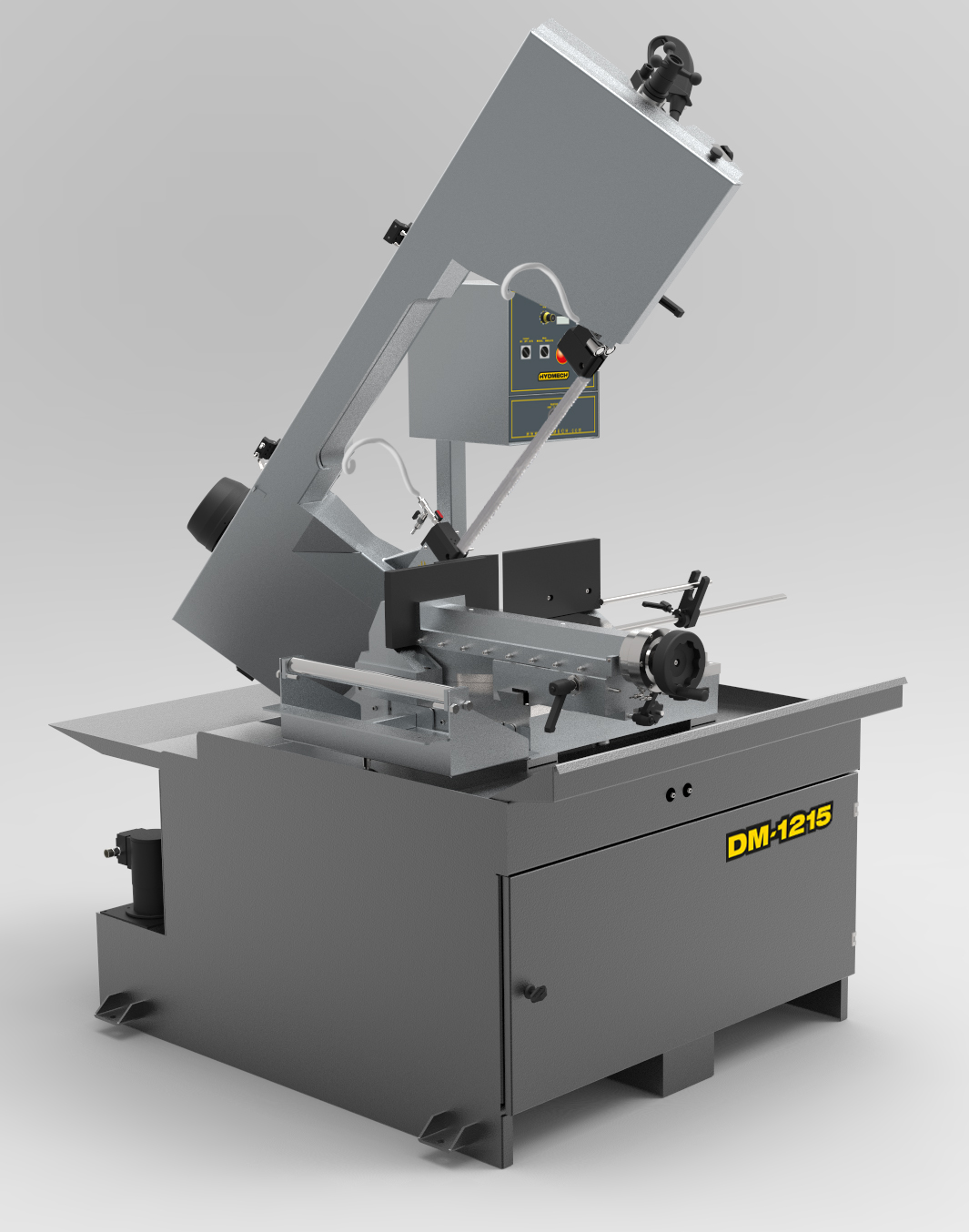

DM-1215
The HYDMECH DM-1215 is a double miter band saw that provides exceptional cutting capability. This versatile saw saves operator set-up time and its compact design makes it ideal for use in tight working spaces.
A rotating table with single cut line allows head and blade groove to move together for smooth, accurate mitering.
From user-friendly operator controls, to easily accessible electrical panels and cabinets, the DM-1215 double miter band saw is solidly built to provide maximum productivity.
From user-friendly operator controls, to easily accessible electrical panels and cabinets, the DM-10 double miter band saw is solidly built to provide maximum productivity.
- Cast Iron Construction for less vibration and longer tool life
- Quick release vise for quicker easier setup time
- Dual feed system operator can choose between metered feed or pull down feed
- Driven chip brush for ensured chip removal for better blade life
- Recirculating flood coolant system for better blade life
- Larger capacity can cut up to 10” diameter
- Direct Blade drive no belts or pulleys
REPLACEABLE BLADE BRUSH
Driven off the blade drive wheel the blade brush keeps the blade gullets clean, helping to maximize blade performance and life.
ROTATING TABLE WITH CUT LINE
A rotating table with single cut line allows head and blade groove to move together for smooth, accurate mitering.
- Manually operated easy swing, cast saw head
- Quick release cast-iron vise with dovetail ways
- Rotating table with cut line
- Band tension indicator
- Manual gravity head feed
- Replaceable blade brush
- Small footprint
- Robust steel base
- Easy to read angle scale
- AdjustaReplaceable carbide guide inserts
- Mechanical blade tensioning
- Safety door interlocks
- Flood coolant
- Work stop
- Storage in saw base (DM-12/15 only)
- Direct variable frequency drive – no belts/pulleys (DM-12/15 only)
- Mist lubrication
- K110 5’ infeed/out feed roller
- R2 Work stop for K110 table
- Adapter Plate for K110 table
- Idler conveyor
