COLD SAW
AUTOMATIC VERTICAL COLUMN

C350-2CNC

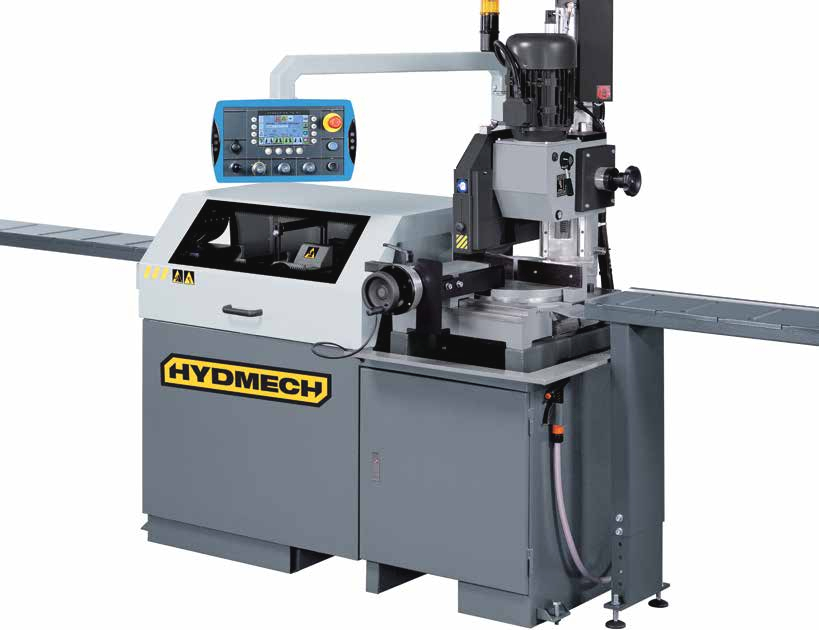

The C350-2CNC is an automatic vertical column cold saw ideal for jobs requiring multiple lengths and quantities.

The C350-2CNC miters from 60° left to 45° right. Equipped with a 23″ single stroke, multi-indexing material feed system the C350-2CNC also features 4 different blade speeds.

ProMaxMachinerie Call for Price

Featuring a 4 1/2″ round hollow capacity, 2.5/3.5 HP motor, and 14″ blade, the C350-2CNC automatic cold saw is the ideal choice for quick, clean, multi-length metal cutting.

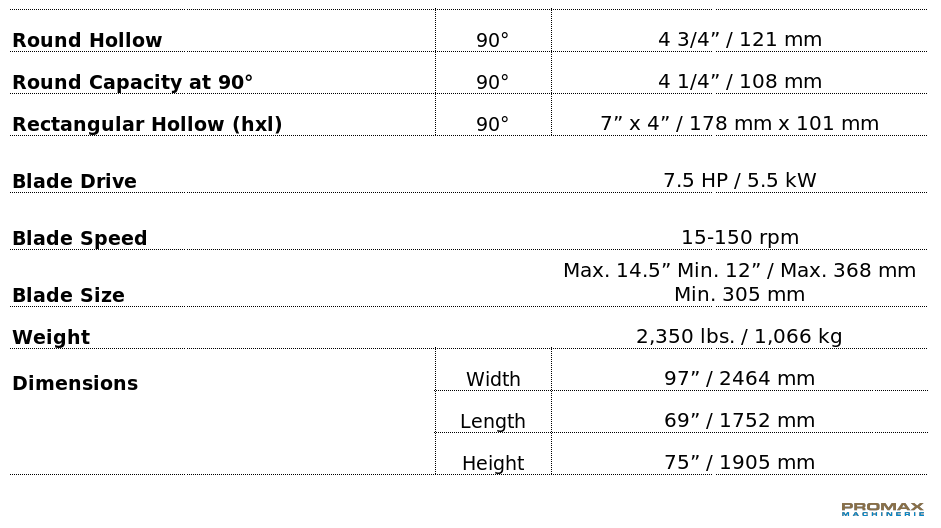

C350-2CNC Technical Specification

Standard-features

  • Automatic operation
  • Feed rate control dial
  • Shuttle features automatic multi-indexing up to 23” in a single stroke with automatic kerf compensation. Powered by ball screw and stepper motor.

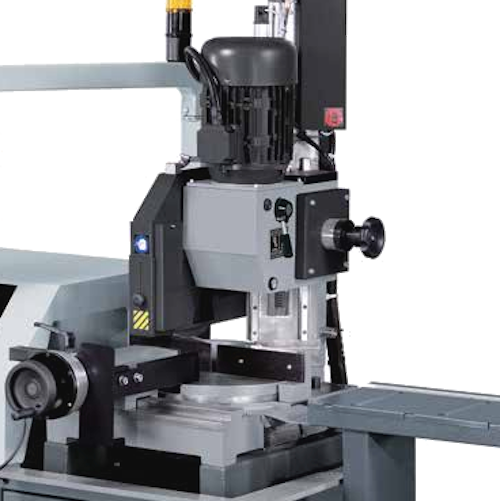

  • Heavy duty sawing head with manual movement on adjustable dual precision linear rails
  • Robust sawing head miters 45° left and right, and 60° left
  • Variable blade speeds of 15 to 90 rpm
  • Anti-burr clamp with double locking system
  • Vertical pneumatic vise

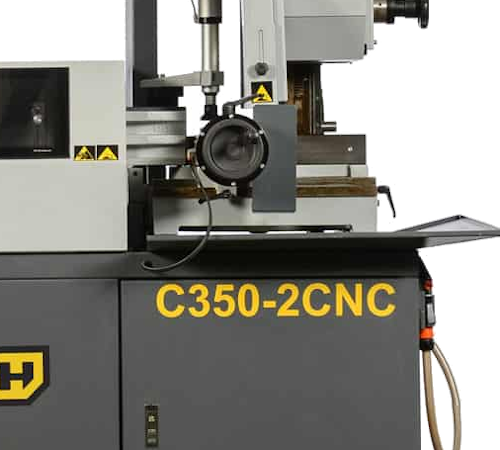

  • Pneumatic operating vise capable of sliding on dovetail to adjust with saw head mitered position
  • Enclosed steel base with chip drawer and coolant tank

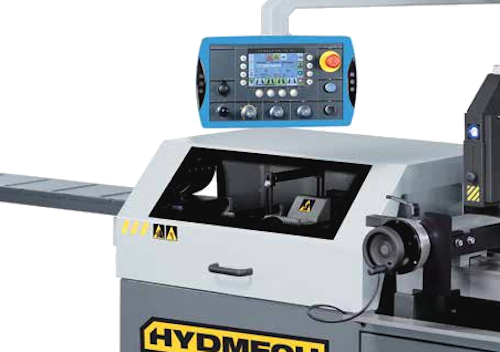

  • Replaceable blade brush Ergonomically positioned control panel includes main disconnect,
  • programmable sawing stroke, digital display indicates machine diagnostics and operations such
  • as blade speed and cutting time. Store up to 99 jobs.
  • Flood coolant with electrical coolant pump
  • Wash down hose
  • One blade included



Options

  • Second pneumatic horizontal operating vise
  • Mist lubrication system
  • K40 5’ roller table
  • Roller table support stands (extra legs)
  • “Flip over” material stops with 60” ruler
  • R2 ruler extensions for outfeed roller tables
  • Roller table adapter – required if ordering roller table for out feed
  • HSS Oxide Coated Blade



HYDMECH C350-2CNC AUTOMATIC VERTICAL COLUMN COLD SAW
