BAND SAW

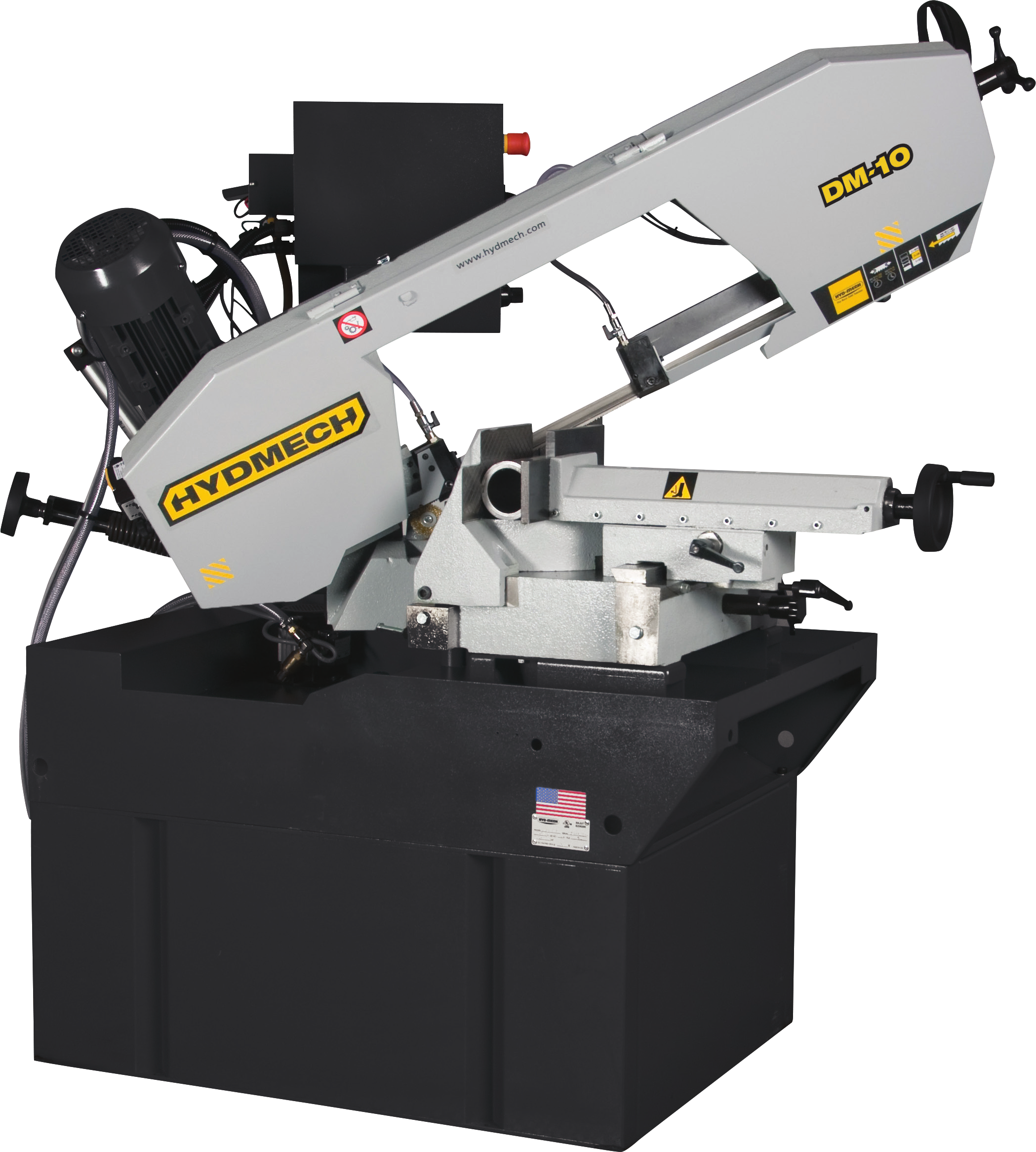

MANUAL DOUBLE MITER BAND SAW

DM-10

Exceptional cutting capability. This versatile saw saves operator set-up time and its compact design makes it ideal for use in tight working spaces. Its cast iron head and vises are designed for rigidity – absorbing vibrations and ensuring accuracy during cutting. A rotating table with single cut line allows head and blade groove to move together for smooth, accurate mitering.

ProMaxMachinerie Call for Price



From user-friendly operator controls, to easily accessible electrical panels and cabinets, the DM-10 double miter band saw is solidly built to provide maximum productivity.

  • Cast Iron Construction for less vibration and longer tool life
  • Quick release vise for quicker easier setup time
  • Dual feed system operator can choose between metered feed or pull down feed

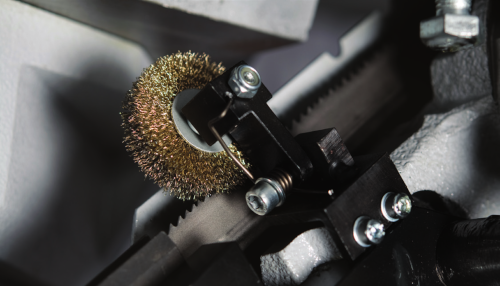

  • Driven chip brush for ensured chip removal for better blade life

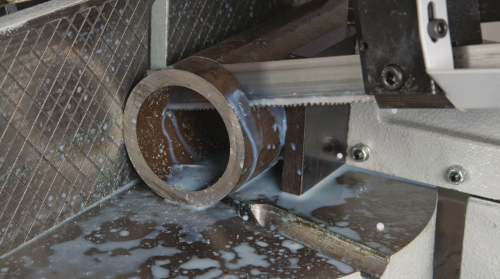

  • Recirculating flood coolant system for better blade life
  • Larger capacity can cut up to 10” diameter
  • Direct Blade drive no belts or pulleys

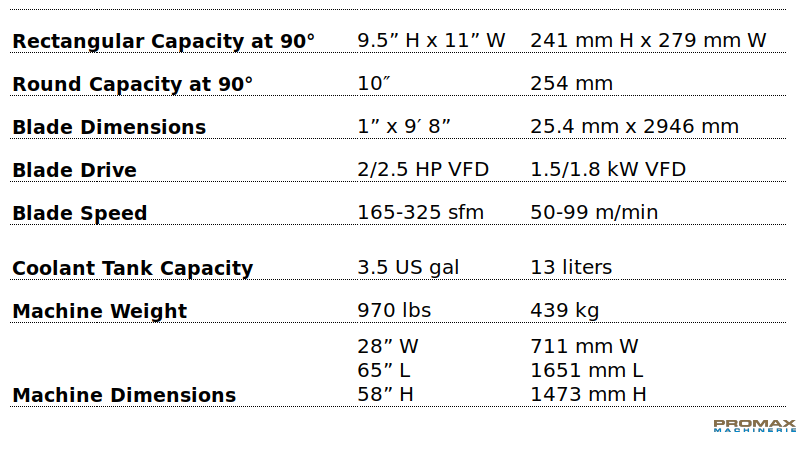

DM-10 Technical Specification

Standard-features

  • Manually operated easy swing, cast saw head
  • Quick release cast-iron vise with dovetail ways
  • Rotating table with cut line
  • Band tension indicator
  • Manual gravity head feed
  • Replaceable blade brush
  • Small footprint
  • Robust steel base
  • Easy to read angle scale
  • AdjustaReplaceable carbide guide inserts
  • Mechanical blade tensioning
  • Safety door interlocks
  • Flood coolant
  • Work stop
  • Storage in saw base (DM-12/15 only)
  • Direct variable frequency drive – no belts/pulleys (DM-12/15 only)



Options

  • Mist lubrication
  • Pneumatic vise with foot pedal
  • Single phase (Note: limits user to high blade speed only)
  • K110 5’ infeed/out feed roller

HYDMECH DM-10-DOUBLE MITER BAND SAW
