H-14A

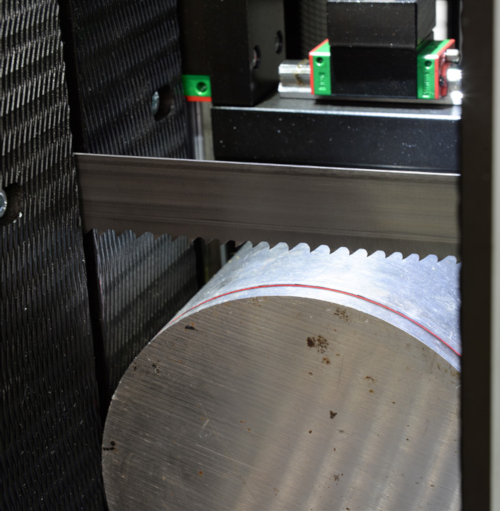

HYDMECH has done it again! You’ll be impressed by the completely redesigned HYDMECH H-14A band saw featuring a rigid cast head, column, and base which reduces vibrations and provides the lowest decibel sound in the sawing industry.
Designed for high production cutting with a carbide tipped blade, the H-14A is unlike anything on the market. With an enclosed design for superior safety, this machine uses 66% less energy than competing models due to on-demand hydraulics which only operate when needed. Its 25 mm remnant length option reduce material waste saving you money!

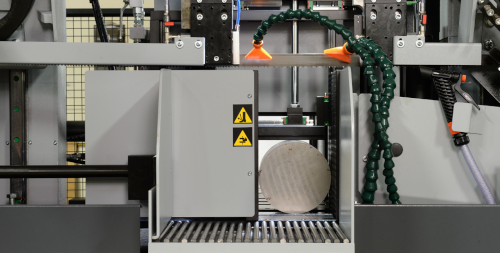

Featuring a powerful 8.8 HP variable frequency drive motor, the H-14A has a heavy-duty shuttle vise powered by a ball screw and vector motor. This provides material indexing up to 19” in a single stroke with multi-indexing capability. Save money with its split front vise, where the material is clamped on both sides of the saw blade. This reduces the breakaway burr and improves the surface finish of the cut. A cast iron guide arm mechanically connected to the front vise movable jaw provides proper guide arm spacing to fit the material being cut.
A touch screen controller operates the automatic cycle and allows for manual operation.

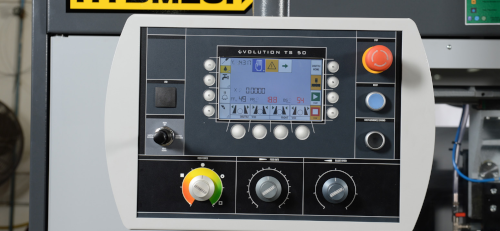

TOUCH SCREEN CONTROL
Automatic mode: displays blade speed, blade tension part length, quantity required, and piece count, job run time, total blade run time Machine will shut down when the required number of pieces have been cut.
OPTIONAL OVERHEAD BUNDLING
A hydraulically powered overhead clamp moves down on the material. This option is very effective, and necessary for bundle cutting various material shapes & sizes.

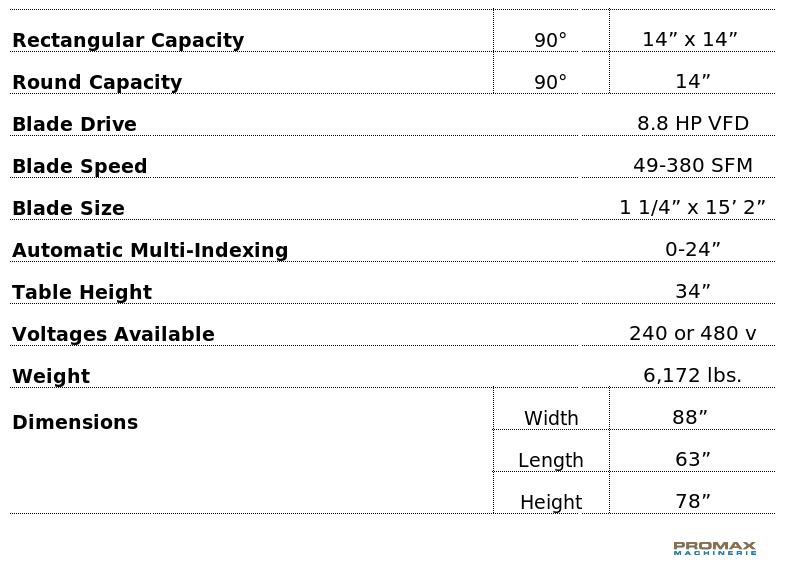

With a 1 ¼” blade and 14” x 14” capacity, the new H-14A is the ideal band saw for all your straight cuts.
- Heavy duty cast iron saw head
- Spilt front vise allows for short 4.7” remnant length
- Cast iron shuttle features automatic multi-indexing up to 24” in a single stroke with automatic kerf compensation. Powered by ball screw and stepper motor
- On-demand hydraulics save energy
- Cast iron guide arms mounted on linear rails. Hydraulically powered idler side guide arm is
adjustable for proper spacing - 8.8 HP VFD. True direct blade drive – no belts pulleys
- Full capacity, full stroking hydraulic vises
- Hydraulic positive down feed
- Blade chamber separates material from cut part
- Cast iron band wheels
- Swing away automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue
- Replaceable blade brush
- Robust steel base
- Automatic chip removal conveyor
- Easy access electrical panel and hydraulics
- Blade breakage switch
- Out of stock switch
- Electronic band tensioning with digital readout
- Replaceable carbide guide inserts
- Safety door interlocks
- Flood coolant with wash down hose
- Laser light & work light
- Full capacity hydraulic OH bundling
- Mist lubrication
- Variable vise pressure
- Vertical rollers
- Short remnant of 0.98”
- Idler & powered conveyors

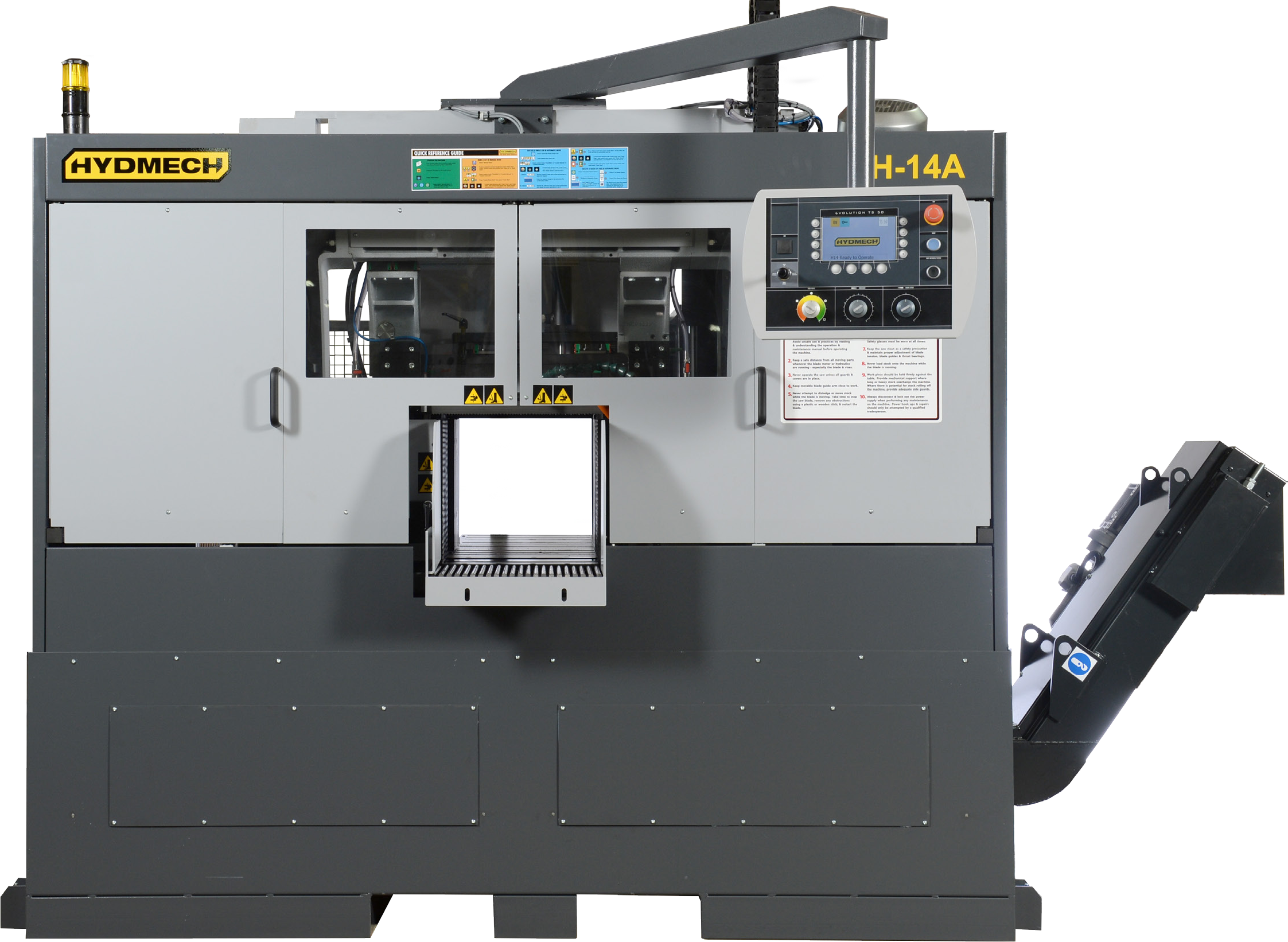

HYDMECH H-14A AUTOMATIC HORIZONTAL BAND SAW
