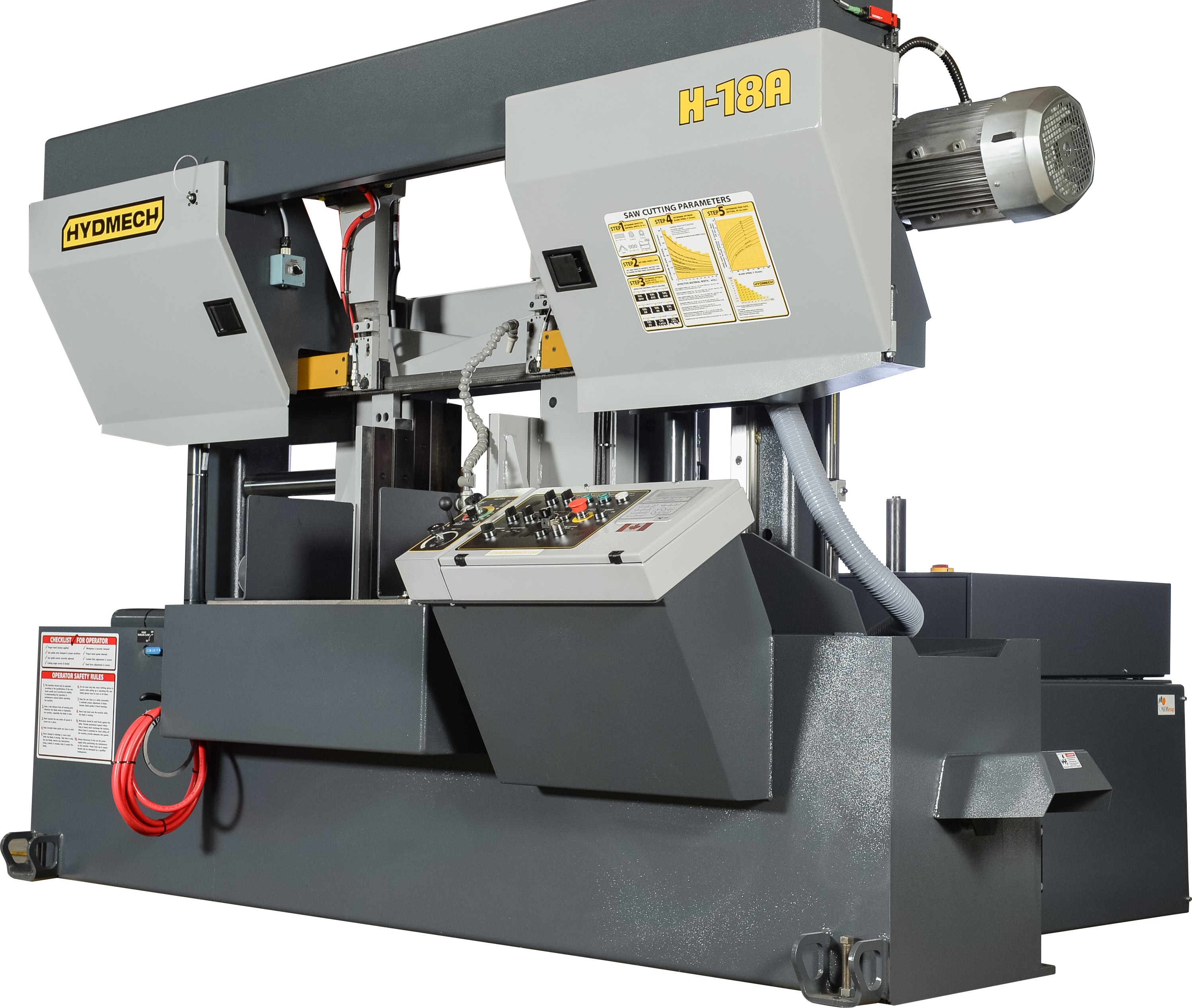

H-18A
The H-18A is an automatic horizontal band saw providing accurate 90° metal cutting for medium to heavy-duty applications.
The H-18A cuts fast, with its high speed shuttle feed indexing up to 34″ in a single movement. Its standard split front vise delivers a short material remnant length, reducing material waste.
Featuring an 18″ x 18″ capacity, 10 HP motor, and 1 1/2″ blade, the H-18A is a reliable choice for all your horizontal metal cutting applications.

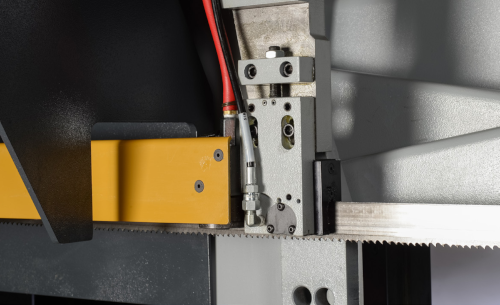

CAST IRON GUIDE ARMS WITH HYDRAULIC BLADE GUIDES
The idler side guide arm is mechanically connected to the front vise moveable jaw and moves in tandem with the opening and closing of the vise, ensuring proper positioning of the guide arm spacing.
10 HP DIRECT BLADE DRIVE
Powerful gearbox and motor assembly with a variable frequency drive system. A wide range of available band speeds allows for efficient cutting of many types of material.
Featuring an 18″ x 18″ capacity, 10 HP motor, and 1 1/2″ blade, the H-18A is a reliable choice for all your horizontal metal cutting applications.
- The best Cost Per Cut Performance in its Class
- Spilt front vise allows for short remnant length
- Cast iron shuttle features automatic multi-indexing up to 34” in a single stroke with automatic kerf compensation
- Cast iron guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times
- 10 HP VFD. True direct blade drive
- Full capacity, full stroking hydraulic vises
- Hydraulic positive down feed
- High resolution feed rate valve allows for constant feed rate when cutting special alloys
- Blade chamber separates material from cut part
- Cast iron band wheels
- Automatic PLC control programmable up to 99 jobs with 5 in queue
- Replaceable blade brush
- Robust steel base
- Automatic chip removal auger
- Blade breakage switch
- Hydraulic band tensioning with digital readout
- Hydraulic carbide guide tensioning
- Hardened, replaceable wear plates
- Safety door interlocks
- Flood coolant with wash down hose
- Work light
- Full capacity hydraulic overhead bundling
- Variable vise pressure
- Blade deviation monitor
- Mist lubrication
- Out of stock switch
- Vertical alignment rollers
- Pedestal Control
- Laser light
- Roller discharge table
- Idler & powered conveyors
