H-26-42

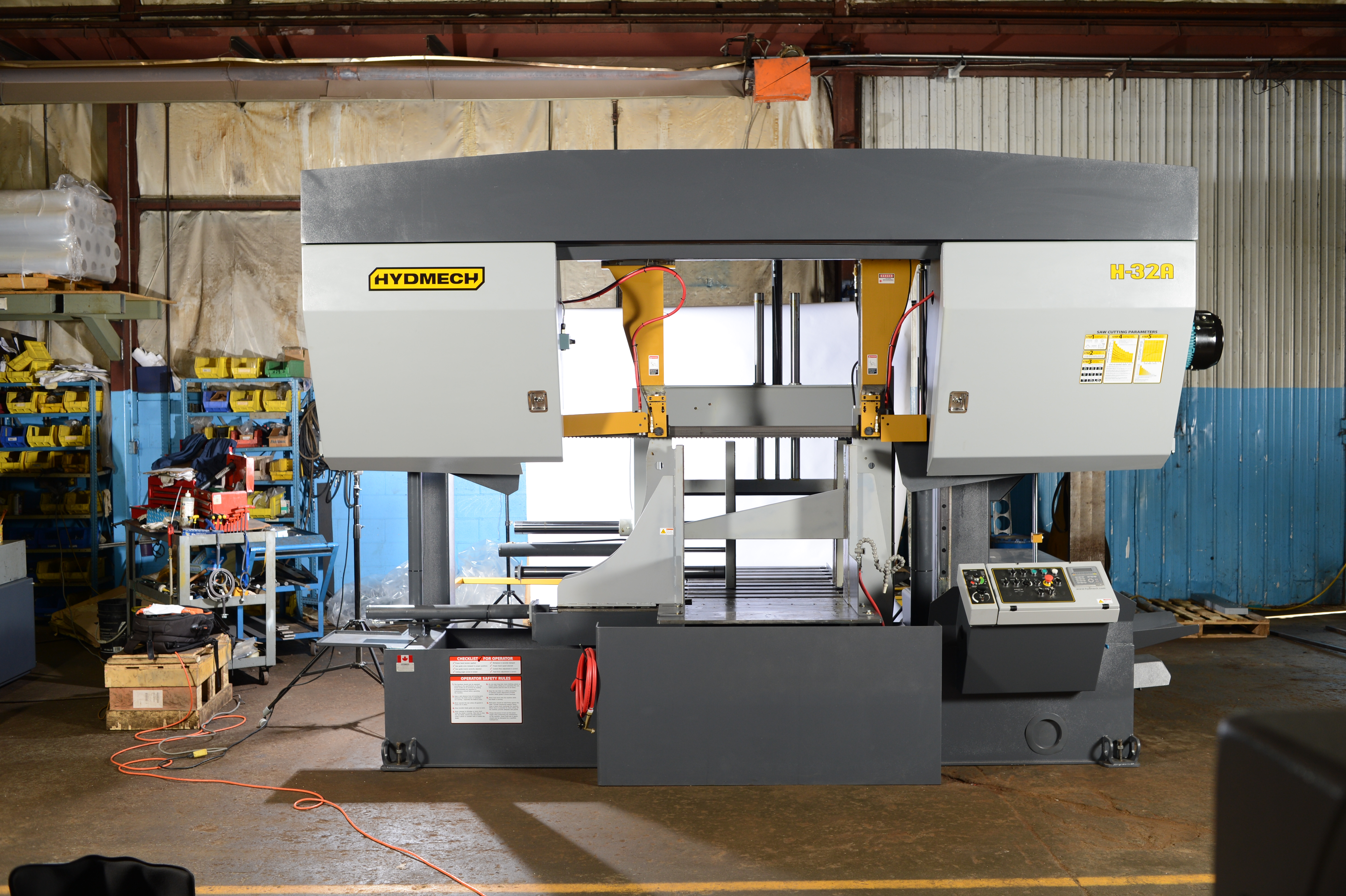

The H-26/42 is a semi-automatic horizontal band saw providing accurate 90° metal cutting for heavy-duty applications.
Its 12° degree canted head allows for more efficient cutting and improved blade life. A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.
HYDMECH’s direct down feed system provides easy adjustment of both head feed rate and cutting pressure.

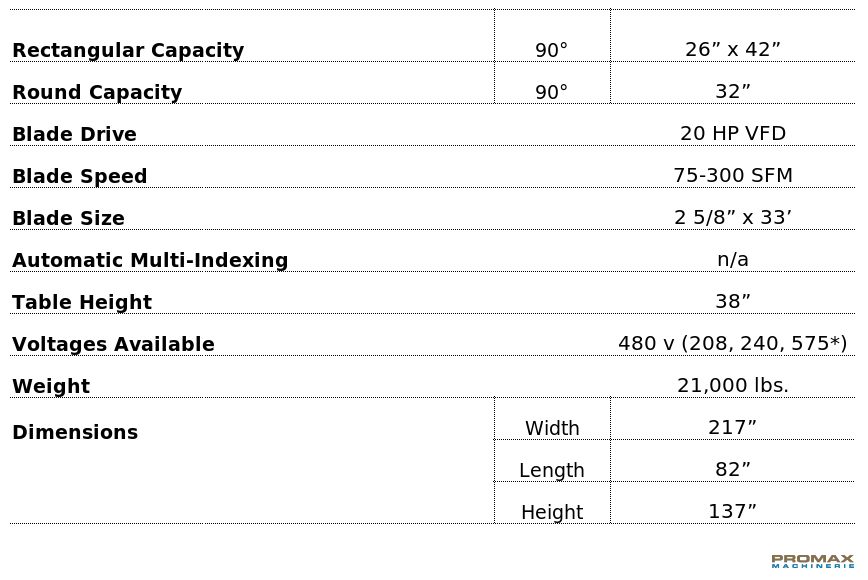

Featuring a 26″H x 42″W capacity, 20 HP motor, and 2 5/8″ blade, the H-26/42 is a reliable choice for all your heavy-duty horizontal metal cutting applications.
- 12° canted head
- Built to withstand heavy fabricating environments
- One piece design – no alignment necessary
- Steel guide arms
- Hydraulic positive down feed
- 20 HP VFD. True direct blade drive – no belts/pulleys
- Full capacity, full stroking hydraulic vises

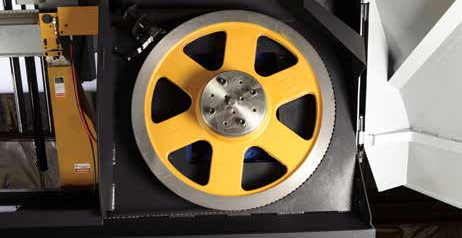

- Cast iron band wheels
- Semi-automatic PLC control
- High resolution feed rate valve allows for constant feed rate when cutting special alloys
- Replaceable blade brush
- Robust steel base
- Automatic chip removal auger
- Easy access electrical panel and hydraulics
- Blade breakage switch
- Hydraulic band tensioning with digital readout
- Hydraulic carbide guide tensioning
- Hardened, replaceable wear plates
- Safety door interlocks
- Flood coolant with wash down hose
- Laser light
- Hydraulic overhead clamp
- Pedestal control

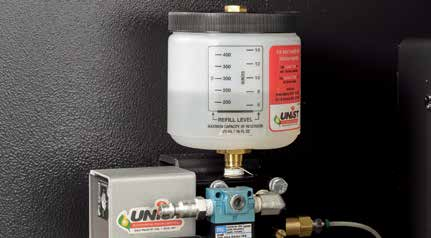

- Mist lubrication
- Outboard vise
- Vertical rollers
- Idler & powered conveyors
