S-20P
The S-20P, semi-automatic scissor style band saw features a swing head design and provides exceptional miter cutting capability for light to medium duty applications.

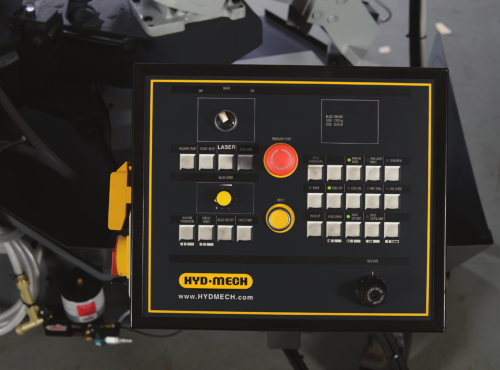

Its digital LCD display shows machine mode, pieces cut, blade speed, blade tension, amperage draw of blade motor, cut duration, overall machine run time, and head position.

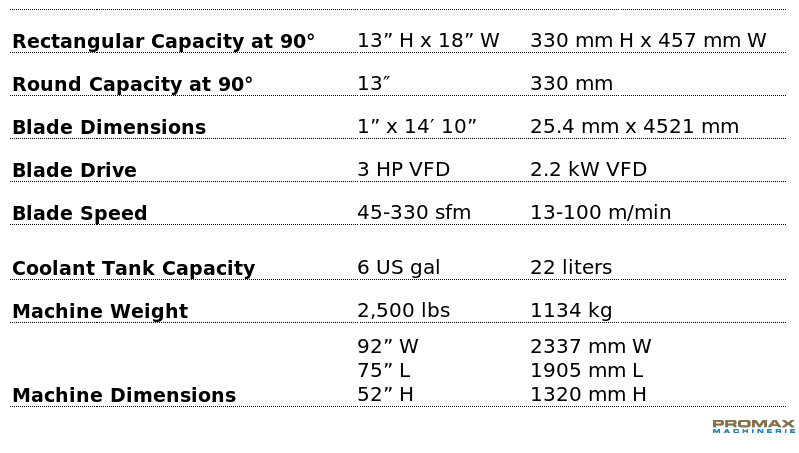

Featuring a 13″H x 18″W capacity at 90°, 3 HP motor, and 1″ blade, the S-20P is a versatile semi-automatic scissor style band saw ideal for use in tight working spaces.
- Easy swing, heavy duty cast iron saw head
- Full capacity, full stroking hydraulic vise
- 3 HP VFD. True direct blade drive – no belts/pulleys
- On-demand hydraulics save energy
- 36” material in-feed roller table and 19” out feed table
- Cast iron band wheels
- Swing away semi-automatic control
- Replaceable blade brush
- Robust steel base
- Easy to read angle scale with angle locking mechanism
- Cast iron guide arms. Idler side guide arm is adjustable and supported by linear rail.
- Gravity head feed
- Mechanical band tensioning with digital readout
- Replaceable carbide guide inserts
- Safety door interlocks
- Flood coolant with wash down hose
- Laser light
- Work light
- Full capacity hydraulic overhead bundling
- Work stop
- Single phase – 220 v
- Remote operator console
- Mist lubrication
- Variable vise pressure
- Idler conveyors

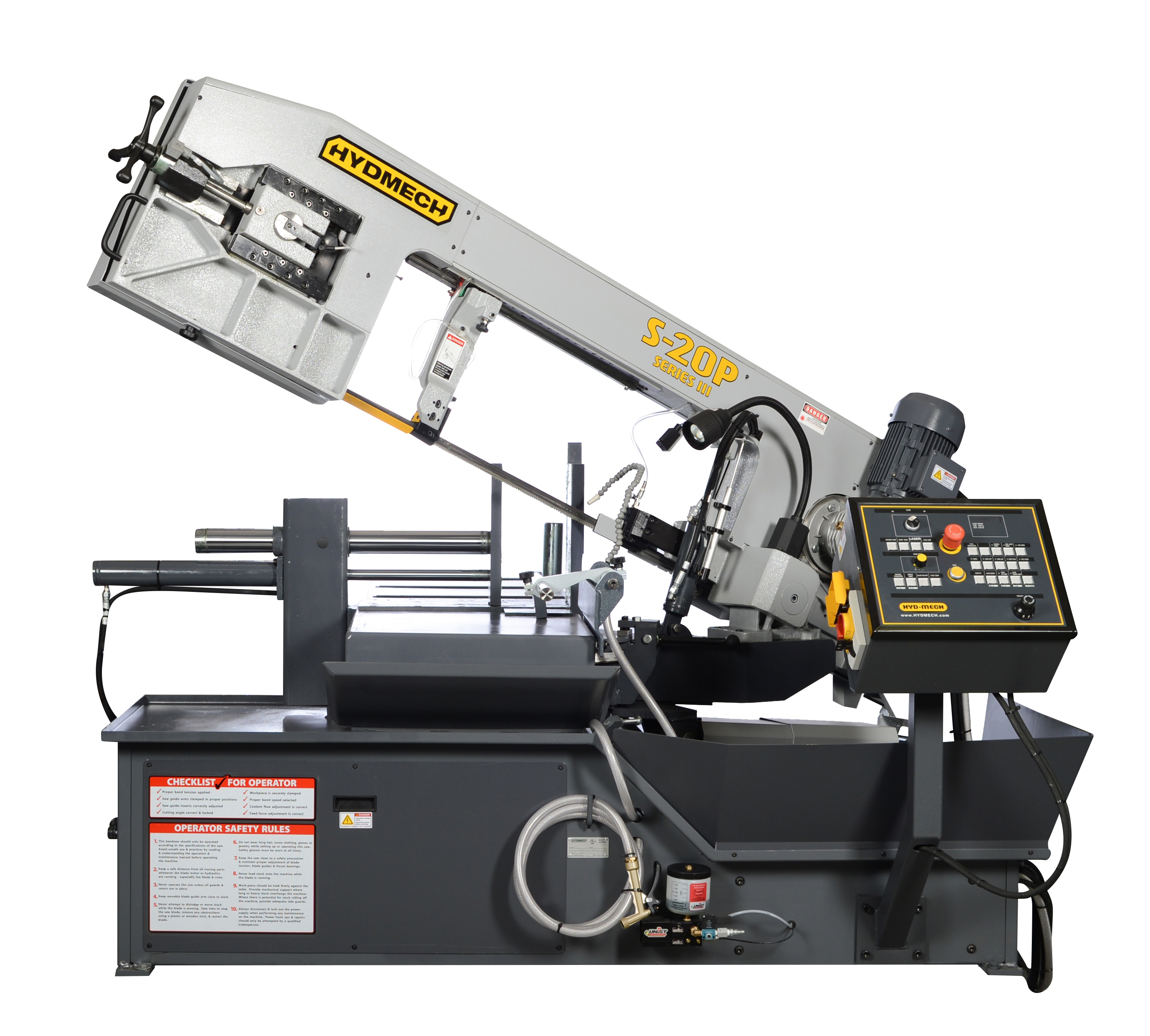

HYDMECH S-20P SEMI-AUTOMATIC HORIZONTAL PIVOT BAND SAW
