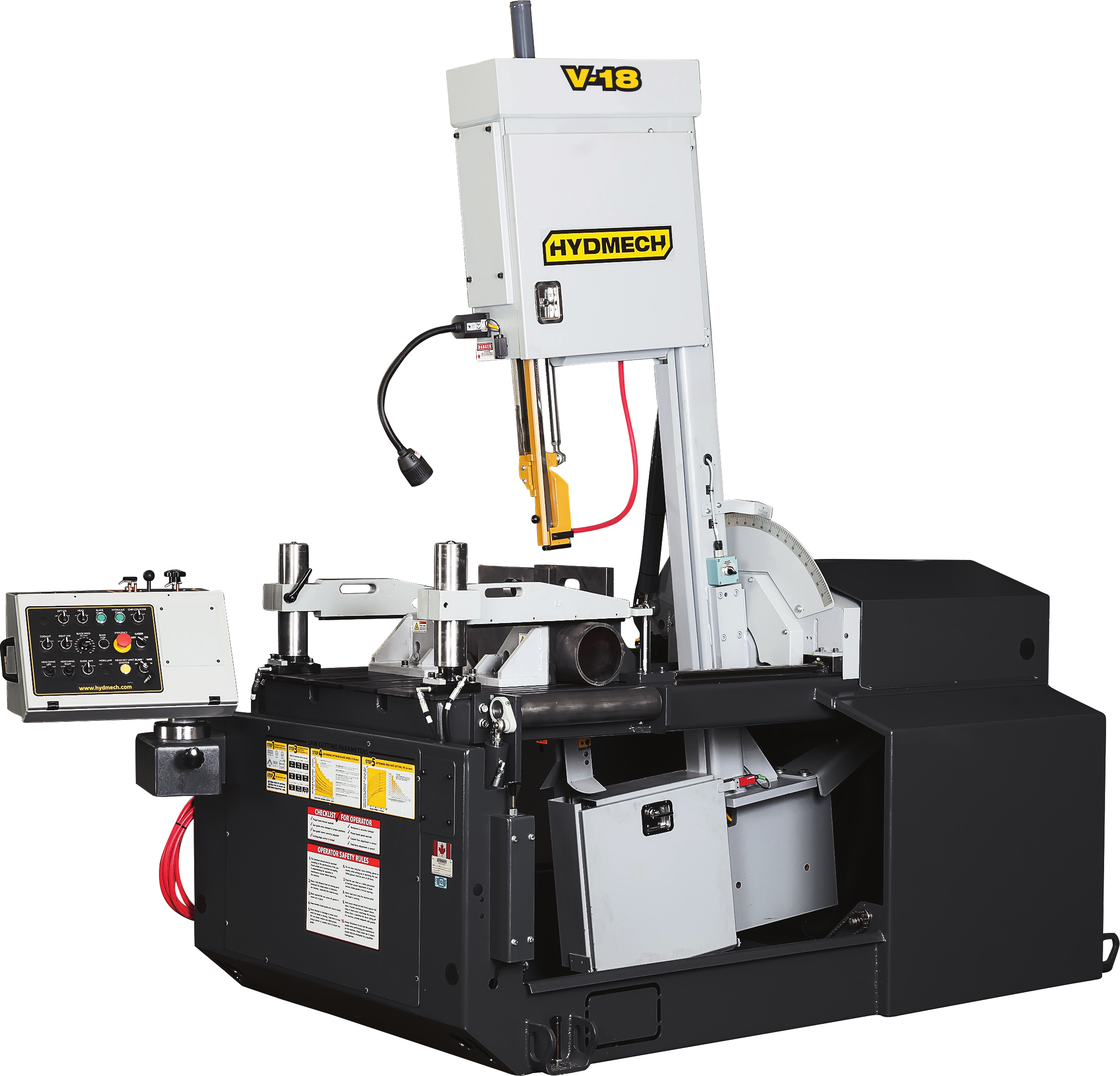

V-18
The V-18 is a manual vertical band saw with the ability to miter from 45° left to 45° right.
A 2 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head advance/retract, blade tension, and guide arm movement.
Its optional 6° degree canted head, recommended when cutting larger beams, structural steel, and bundles of square tubing allows for more efficient cutting and improved blade life.

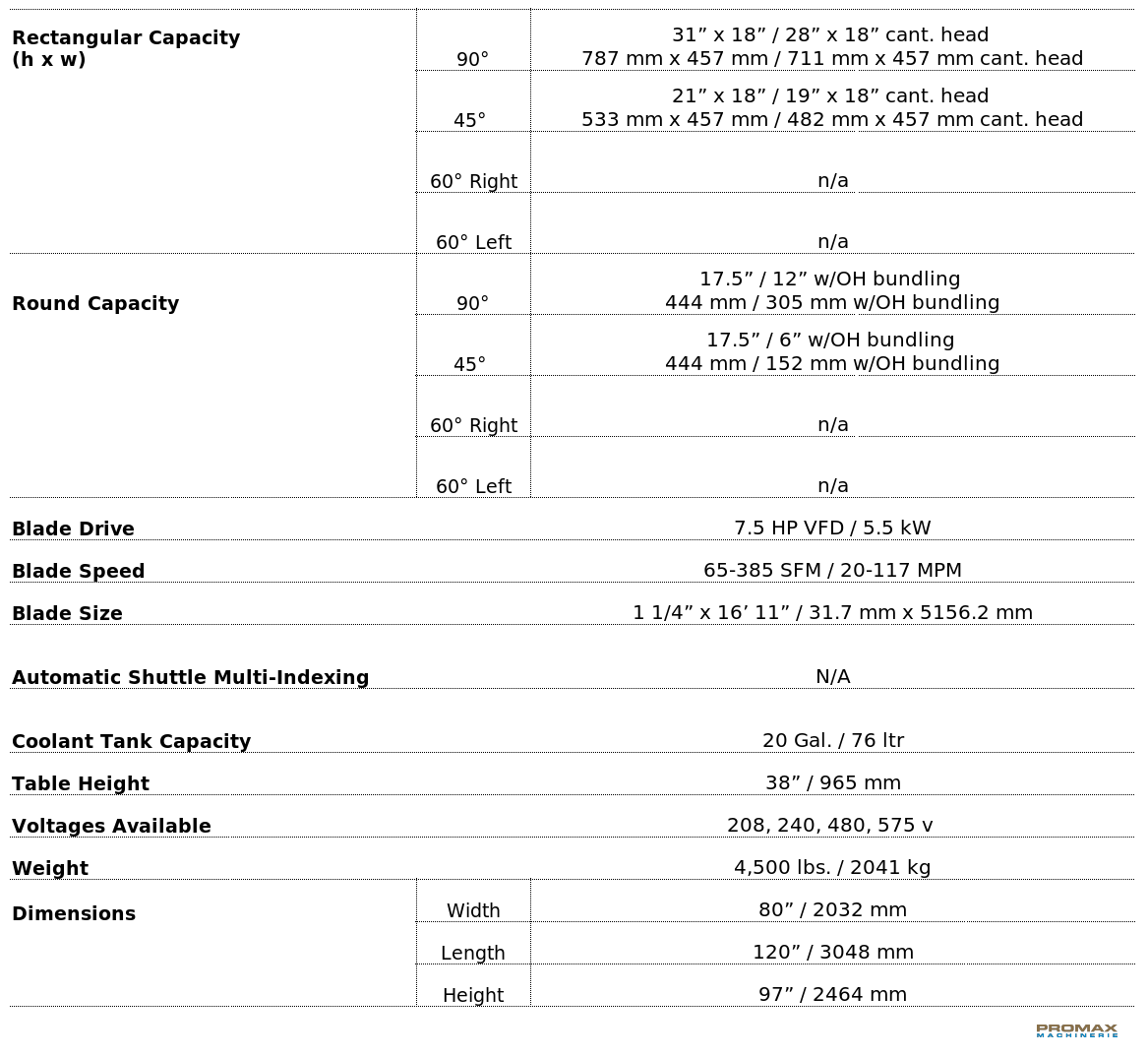

Featuring a 18″W x 31″H capacity, 7.5 HP motor, and 1 1/4″ blade, the V-18 is a reliable choice for all your vertical metal cutting applications.

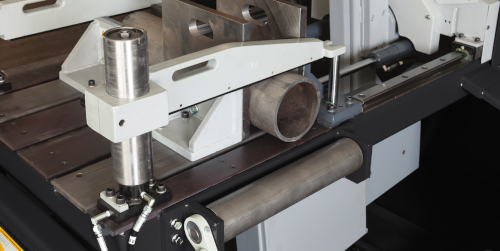

- Two full stroking hydraulic vises
- Select left or right side control panel
- Hydraulically powered guide arm positioning
- 5 HP VFD. True direct blade drive – no belts/pulleys
- Hydraulic positive down feed
- Cast iron band wheels
- Replaceable blade brush
- Robust steel base

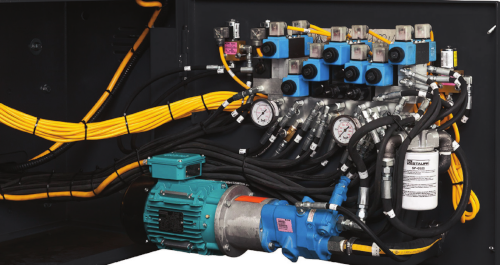

- Easy access electrical panel and hydraulics
- Blade breakage switch
- Hydraulic band tensioning with digital readout
- Replaceable carbide guide inserts
- 2 HP hydraulic pump provides system pressure
- Safety door interlocks
- Flood coolant with wash down hose
- Laser light
- Work light
- Fixed 6° canted head
- Chip bucket
- Hydraulic overhead bundling
- Digital angle display
- Mist lubrication
- Pop-up lift roller
- Variable vise pressure
- Drag chain chip conveyor
- Tall square vise inserts
- Hydraulic chip conveyor
- Idler conveyors
- Powered conveyors
