BAND SAW
SEMI-AUTOMATIC VERTICAL

V-25

The V-25 is a semi-automatic vertical band saw with the ability to miter from 60° left to 60° right.

A 3 HP driven hydraulic pump supplies system pressure through both a two and three position directional valves controlling all vises, head swing, head advance/retract, blade tension, and guide arm movement.

ProMaxMachinerie Call for Price

Its standard 6° degree canted head allows for more efficient cutting and improved blade life.

Featuring a 30″H x 25″W capacity, 10 HP motor, and 1 1/2″ blade, the V-25 is a reliable choice for all your vertical metal cutting applications.

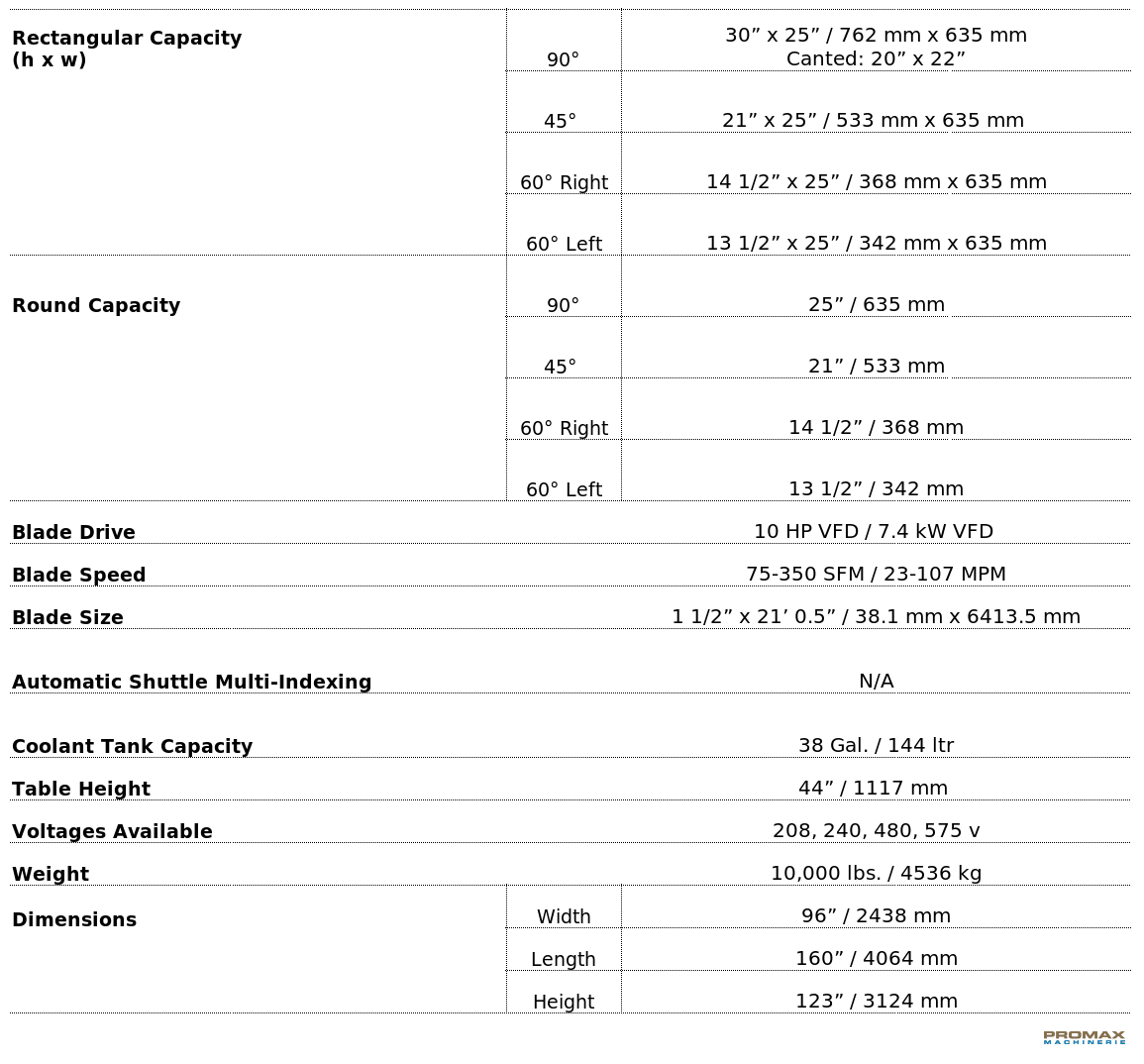

V-25 Technical Specification

Standard-features

  • 6° canted head allows for efficient cutting and improved blade life
  • Control provides hydraulic powered mitering from 60° left to 60° right
  • Digital angle display

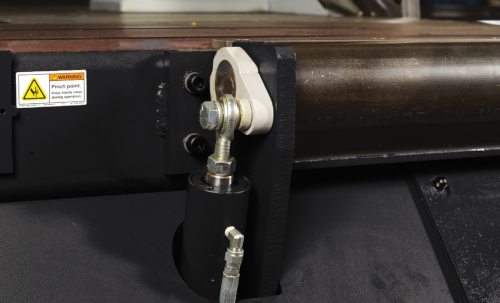

  • Two full stroking hydraulic vises
  • Hydraulically powered guide arm attached to saw column.

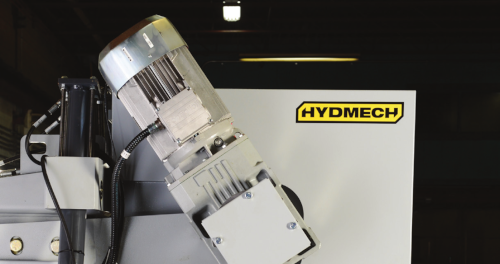

  • 10 HP VFD. True direct blade drive – no belts/pulleys
  • Cast iron band wheels
  • Replaceable blade brush
  • Robust steel base
  • Easy access electrical panel and hydraulics
  • Blade breakage switch
  • Hydraulic band tensioning with digital readout
  • Replaceable carbide guide inserts
  • 3 HP hydraulic pump provides system pressure
  • Safety door interlocks

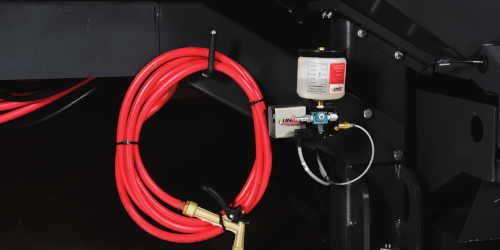

  • Flood coolant with wash down hose
  • Laser light
  • Work light



Options

  • Chip bucket with pump
  • Hydraulic overhead bundling
  • Mist lubrication
  • Pop-up feed roller
  • Variable vise pressure
  • Tall square vise inserts
  • Hydraulic chip conveyor
  • Bridge/interface bracket
  • Powered bridge/interface bracket
  • Idler conveyors
  • Powered conveyors

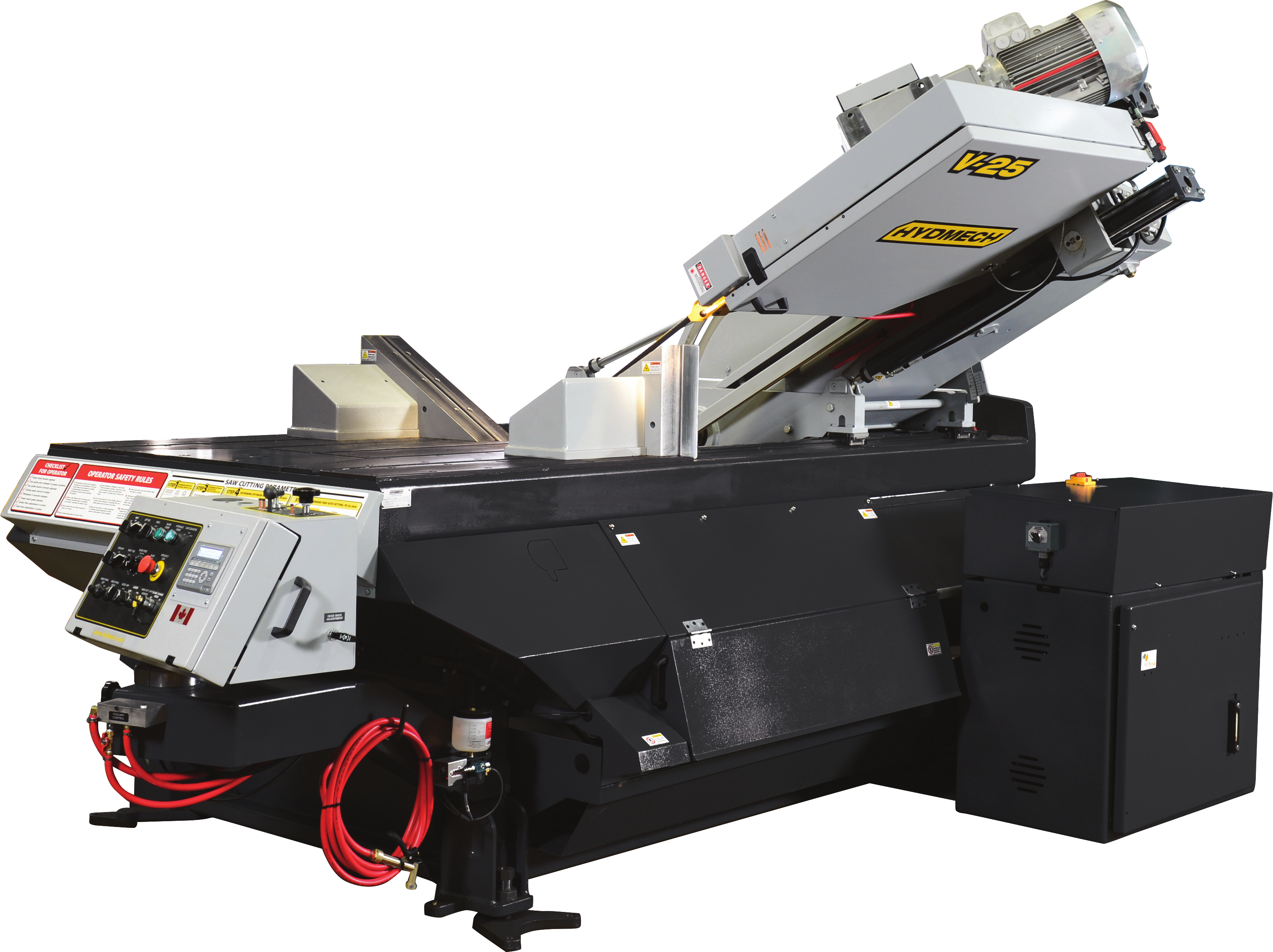

HYDMECH V-25 Vertical-Band-Saw
